A Liner-plate tunneling machine Production line is an industrial manufacturing system designed to produce steel tunnel liner plates. These plates are segmental, corrugated steel components used as primary or temporary support in soft-ground tunneling, shaft construction, relining existing structures, and trenchless projects.

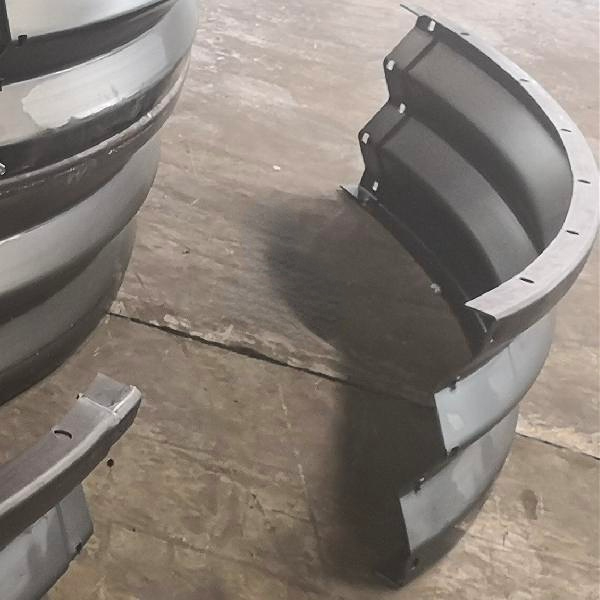

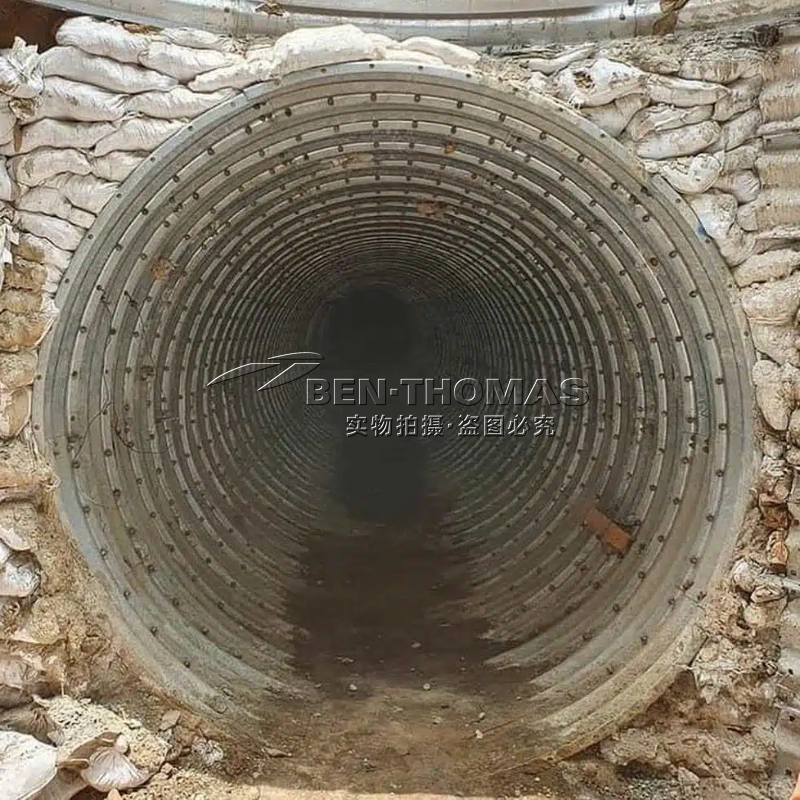

Tunnel liner plates are lightweight, bolted steel segments that assemble inside a tunnel to form a continuous ring or tube. They provide immediate ground support in unstable soils, distributing loads through ring compression and often reinforced with steel ribs in larger diameters. They are commonly galvanized for corrosion resistance and can be temporary (removed after concrete lining) or permanent.

BEN-THOMAS is manufacturing 2-Flange Tunnel Liner Plate machine production line and 4-flange Tunnel liner plate production line .

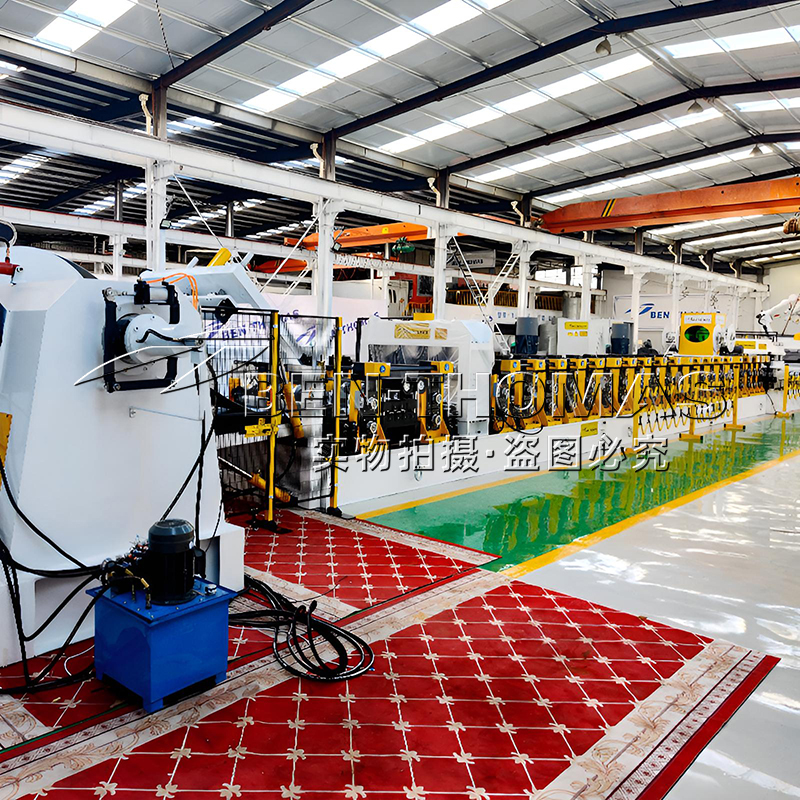

BEN-THOMAS’s state-of-the-art line typically consists of the following sequential stations:

• Decoiling & Levelling Unit: Unwinds the heavy steel coil and flattens it to remove any curvatures.
• Punching / Piercing Station: Punches the bolt holes before or after shaping the corrugations. This is critical for achieving perfect hole alignment in the final curved plate.
• Profile Shaping Section (The Heart of the Line): A series of precisely machined, heavy-duty roller that gradually bend the steel into the deep, structural profile .
• Cut-to-Length & Shearing Station: Cuts the continuously formed plate to the exact required length.
• Edge Forming / Crimping Station: Bends or rolls the longitudinal edges of the plate to create the interlocking or overlapping joint for assembly.
• Post-Forming Punching (If applicable): For adding secondary holes or features.
• Automated Handling & Stacking: Robots or conveyors stack the finished plates for bundling and shipping.
• Control System & HMI: The “brain” of the line. A centralized computer controls speed, positioning, and sequencing, allowing for quick changeovers between different plate specifications.

Advantages Over Traditional Methods :

• High Speed & Volume: Produces plates continuously and consistently, far faster than manual fabrication.
• Unmatched Precision: Ensures every plate is identical, guaranteeing perfect fit and seal during on-site bolting. This is vital for structural integrity.
• Material Efficiency: Optimized rolling and punching minimize scrap.
• Labor Savings: Drastically reduces the need for skilled welders and fabricators.
• Consistent Quality: Automated process eliminates human error, producing uniform, high-quality plates with reliable mechanical properties.
• Customization Flexibility: Modern lines can be quickly adjusted to produce different plate thicknesses, corrugation profiles, lengths, and hole patterns.

BEN-THOMAS Value Proposition:

When describing a BEN-THOMAS Production line for metal tunnel liner profiles, you would emphasize its engineering excellence and intelligent features:

• Heavy-Duty Construction: Built with robust frames and high-precision rollers to form thick-gauge steel without deflection.
• Smart Process Control: Integrated intelligent monitoring system to monitor the working status of the molding line in real time.
• Digital Twin & Predictive Maintenance: Use of IoT sensors and data analytics to predict maintenance needs and prevent unplanned downtime.
• End-to-End Solution: BEN-THOMAS often provides not just the machinery, but also the structural design support, assembly instruction, and technical training, making it a true turnkey partner for clients entering the structural plate market.

In essence, a tunnel lining steel plate flange making machine is the foundation for modular underground construction. It empowers manufacturers to efficiently produce the key building blocks for safe, durable, and rapidly deployable tunnel infrastructure worldwide.
