Understanding Steel Box Culvert Structure Equipment: Innovation in Modern Infrastructure
The demand for efficient, durable, and rapidly deployable infrastructure has led to a significant shift in how we approach underground water management and bridge engineering. At the forefront of this evolution is the Steel Box Culvert Structure Equipment, a specialized production line designed to manufacture high-strength, corrugated steel segments that form the backbone of modern drainage and crossing systems.
What is Steel Box Culvert Structure Equipment?

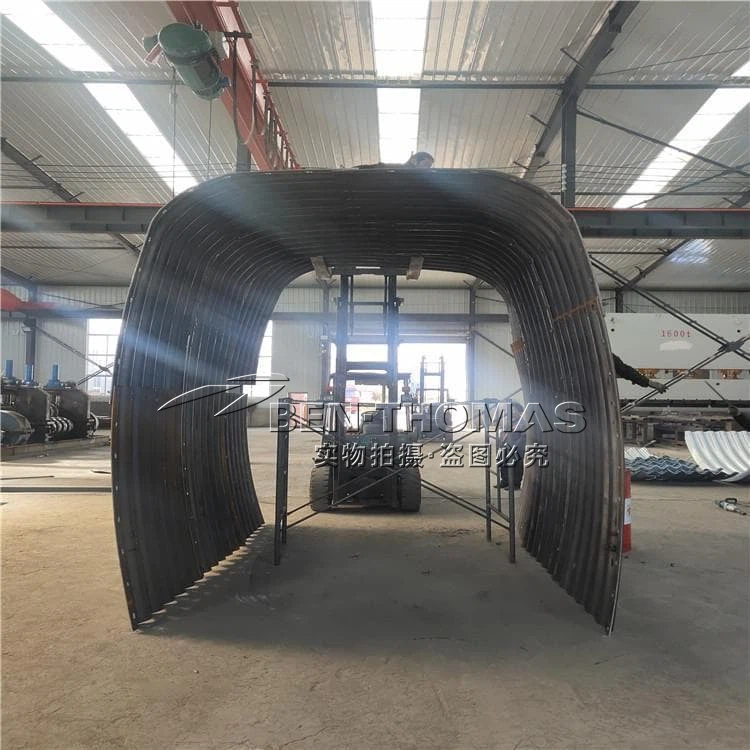

Steel box culverts are large-scale, modular structures used primarily for highway crossings, railway tunnels, and urban storm-water management. Unlike traditional concrete culverts, which are heavy and time-consuming to cast on-site, steel box culverts offer a lightweight yet incredibly robust alternative.
The production equipment required to build these structures is a high-precision roll forming system. It integrates several complex processes:
-
High-Tonnage De-coiling: Handling heavy-duty steel coils with precision.
-
Precision Corrugation: Creating deep-profile waves in the steel to significantly increase its load-bearing capacity.
-
Automated Punching & Curving: Ensuring every bolt hole aligns perfectly for seamless on-site assembly.
-
Modular Forming: Allowing for the creation of square, rectangular, or arched profiles depending on the specific engineering requirements.
Ben Thomas: Engineering Excellence in Roll Forming
As a dedicated manufacturer, Ben Thomas has established itself as a leader in the development and supply of professional Steel Box culvert structure equipment. We understand that in the world of industrial machinery, “experience” is the difference between a machine that simply runs and a line that delivers consistent, high-output quality.
With years of technical expertise, Ben Thomas offers a comprehensive manufacturing solution that prioritizes:
-
Structural Integrity: Our lines are engineered to handle the thickest gauges of steel required for heavy-duty culvert applications, ensuring the finished product meets international safety and durability standards.
-
Turnkey Customization: We recognize that every project has unique parameters. Our engineering team specializes in tailoring equipment to specific corrugation profiles and dimensions requested by global clients.
-
Efficiency & Reliability: By integrating advanced automation and robust mechanical components, we help our partners reduce material waste and minimize downtime.
The Future of Infrastructure
As global investment in infrastructure continues to rise, the move toward modular steel solutions is accelerating. Steel box culverts represent a faster, more sustainable, and more cost-effective way to build the world’s lifelines.
At Ben Thomas, we aren’t just building machines; we are providing the tools for global builders to succeed. Our deep experience in the industry ensures that when you choose a Ben Thomas production line, you are investing in a legacy of quality and a future of structural reliability.
Please contact with us for more information :
Contact: Elise
Tel:+86-155 3281 7581
Email: elise@tgrfm.cn
Frequently Asked Questions
For the metal corrugated pipe production line ,We offer complete in-house tooling design and manufacturing to match your product profiles. After delivery, we provide installation supervision, operator training, and a warranty period. Remote troubleshooting, spare parts supply, and periodic maintenance guidance are also part of our long-term support package.
Yes, our Production Line for Culvert Structural Plate are engineered to process various materials including galvanized steel, aluminum, pre-painted coils, and stainless steel. Material thickness typically ranges from 1.5mm to 12.0mm for Multi Plate Corrugated Culvert Production Line and 1.5mm to 4.0mm for Corrugated Spiral Pipe Production Line. We customize the machine configuration—such as roller hardness, motor power, and control settings—to ensure precise forming and long tooling life for your chosen specification.
Our Multi Plate Corrugated Culvert Production Line and Corrugated Spiral Pipe Production Line feature high automation with integrated PLC control systems that manage speed, length cutting, welding (for pipe lines), and real-time monitoring. Automated sensors detect deviations, and the system can adjust parameters to maintain consistency. This minimizes manual intervention, reduces waste, and ensures each panel or pipe meets precise dimensional and structural standards.
The Spiral Corrugated Pipe Machine Output speed depends on pipe diameter, material thickness, corrugation profile, and welding method. Standard speeds range from 5 to 30 meters per minute. We optimize throughput by configuring heavy-duty decoilers, high-torque spiral forming units, and automated arc welding or seam locking systems—all tailored to your target production rate and product specifications.
We have extensive experience inglobal export packaging and shipping. Mobile Spiral Corrugated Pipe Mill is disassembled into modular, crate-protected sections. Critical components are shock-proof mounted and moisture-sealed. We provide full shipping documentation (packing list, commercial invoice, certificate of origin) and can arrange FOB, CIF, or DAP delivery based on your preference, working with reliable freight forwarders.
We offer a standard18-month warranty from the date of commissioning, covering defects in materials and workmanship for all major components (mainframe, motors, PLC, gearboxes). Consumable parts like forming rolls have a separate warranty period. Our warranty includes free replacement parts and remote technical support. We also provide extended warranty options for critical systems of the Metal Spiral Corrugated Pipe Mill .
